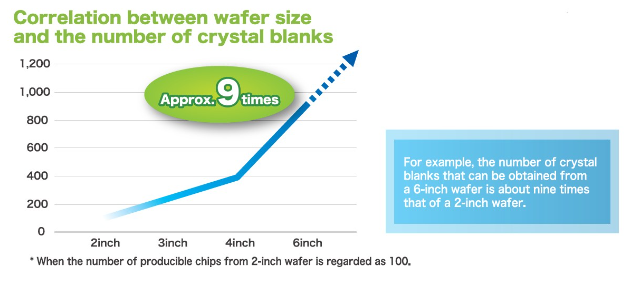

KDS：旨在培育世界上最大的人造晶體,1XXA20000CAA晶振，隨著電子技術的進步，對具有小尺寸、高頻和高精度的晶體器件的需求越來越大。在晶體件的加工中，傳統的機械方法在滿足這些要求方面遇到了困難。因此，利用光刻技術的趨勢越來越明顯，光刻技術源自照相開發，非常適合精細加工并廣泛用于半導體制造,6G無線晶振。在光刻中，隨著晶圓尺寸的增加，每個晶圓的晶片產量也隨之增加，從而提高了生產率。因此，開發大尺寸人造晶體已成為提高公司競爭力的關鍵。KDS系列高端晶體

大尺寸人造晶體開發中存在的問題

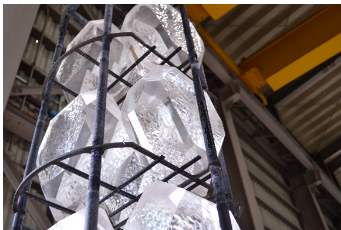

KDS：旨在培育世界上最大的人造晶體,1XXA20000CAA晶振，人造晶體是通過在高溫高壓條件下將天然晶體重結晶到稱為“種子晶體”的板狀晶體上來培養的。然而，僅僅延長生長時間并不能保證生產大型人造晶體。大型人造晶體的培養需要適當尺寸的種子晶體才能達到所需的尺寸。過去，天然晶體的高質量切片被加工并用作種子晶體。然而，隨著所需尺寸的增加，獲得適合用作種子晶體的天然晶體變得越來越具有挑戰性。毫不夸張地說，從自然界獲得種子晶體來培育大型晶體幾乎是不可能的。
解決問題的挑戰和創新

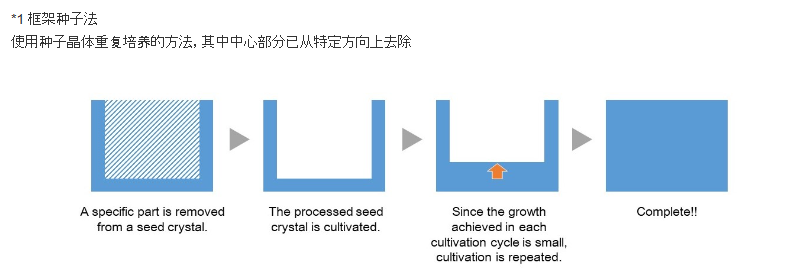

為了應對這些挑戰，KDS晶振踏上了“想象力和創造力”的旅程，人工放大種子晶體。探索了現有晶種的結合作為實現這一目標的手段。最初，KDS晶振在培養過程中的努力面臨著持續的失敗，例如晶體出現裂紋。然而，經過大約五年的奉獻，KDS晶振終于成功地開發出了無裂紋的晶種。然而，使用這些擴大的種子晶體，開發大尺寸人造晶體并不是立即可行的。晶體結構中的扭曲（應變）出現在晶種的連接處，引發了對最終產品性能潛在影響的擔憂。為了解決這個問題，KDS晶振實施了框架晶種法*1來提高晶種的質量，確保晶體結構具有最小的變形和缺陷。
晶體具有更容易或抵抗特定方向生長的特性。在使用框架晶種法的質量改進過程中，放大晶種需要花費大量時間。它涉及反復的培養嘗試，從成功的連接到獲得所需尺寸的晶種需要大約五年的時間。從項目開始到完成靶材大小的晶種晶體的開發，總共花了10多年的時間。

世界上最大的人造晶體的誕生和進一步擴大的進步

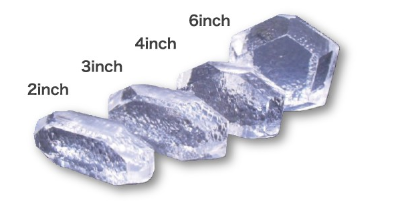

KDS：旨在培育世界上最大的人造晶體,1XXA20000CAA晶振，2022年6月，KDS晶振利用開發的種子晶體成功批量生產了世界上最大的6英寸晶圓人造晶體，KDS晶振正在將其應用于量產產品。此外，KDS晶振還著手開發用于8英寸晶圓的更大人造晶體。進一步提高自身的競爭力，盡管在增加人造晶體和晶圓的尺寸方面存在重大的技術和時間障礙，但這一舉措非常重要，因?yàn)樗谴_保KDS晶振未來競爭優勢的核心技術。通過擴大晶體晶圓的規模，提高KDS晶振的成本競爭力，6G無線晶振并確保KDS晶振在技術方面和成本方面的競爭優勢。
