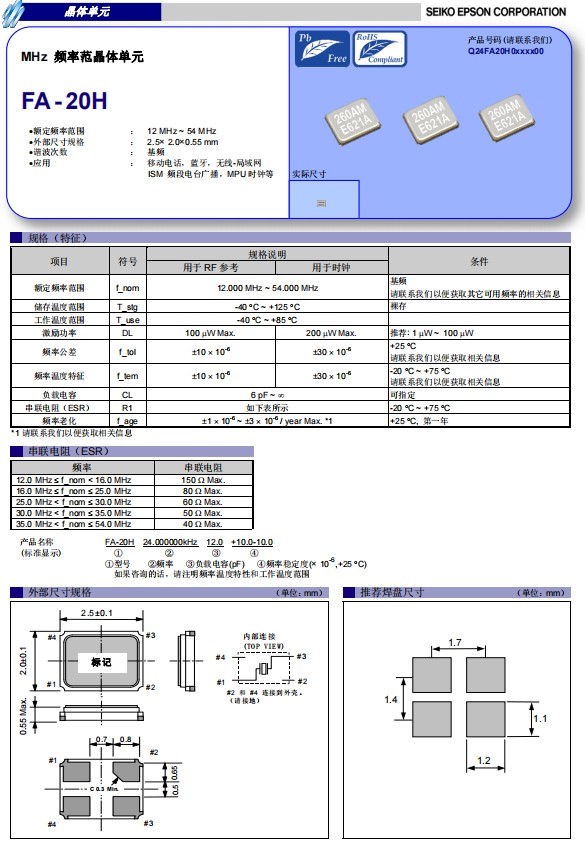

日本進口愛普生晶振熱銷型號FA-20H，是一款小體積晶振尺寸2.5x2.0mm無源晶振，石英晶體諧振器，四腳貼片晶振，F(xiàn)A-20H石英晶體諧振器頻率范圍12MHz至54MHz，可以在-40°C至+85°C的溫度內穩定工作，具有超小型，輕薄型，穩定性好，耐熱及耐環境特性，主要用于移動電話，智能手機，藍牙，無線-局域網，ISM 頻段電臺廣播，MPU時鐘等，因此也有人使用手機晶振、藍牙晶振、時鐘晶振這種詞稱呼這類小尺寸貼片晶振。
FA-20H專用于智能手機應用,Q24FA20H0000600,石英晶體諧振器

產品編碼	貼片晶振	型號	頻率	負載電容	精度
Q24FA20H0000100	2.5x2x0.55mm	FA-20H	18.000000MHz	10pF	+/-10ppm
Q24FA20H0000300	2.5x2x0.55mm	FA-20H	40.000000MHz	9pF	+/-10ppm
Q24FA20H0000500	2.5x2x0.55mm	FA-20H	26.000000MHz	9pF	+/-10ppm
Q24FA20H0000600	2.5x2x0.55mm	FA-20H	26.000000MHz	10pF	+/-10ppm
Q24FA20H0000800	2.5x2x0.55mm	FA-20H	48.000000MHz	7pF	+/-50ppm
Q24FA20H0002900	2.5x2x0.55mm	FA-20H	40.000000MHz	8pF	+/-10ppm
Q24FA20H0003100	2.5x2x0.55mm	FA-20H	40.000000MHz	9pF	+/-10ppm
Q24FA20H0003600	2.5x2x0.55mm	FA-20H	40.000000MHz	11.5pF	+/-10ppm
Q24FA20H0003800	2.5x2x0.55mm	FA-20H	40.000000MHz	12pF	+/-10ppm
Q24FA20H0003900	2.5x2x0.55mm	FA-20H	26.000000MHz	9pF	-9/+11ppm
Q24FA20H0004400	2.5x2x0.55mm	FA-20H	16.000000MHz	9pF	+/-10ppm
Q24FA20H0004700	2.5x2x0.55mm	FA-20H	40.000000MHz	8.5pF	+/-15ppm
Q24FA20H0005000	2.5x2x0.55mm	FA-20H	32.000000MHz	16pF	+/-10ppm
Q24FA20H0005100	2.5x2x0.55mm	FA-20H	16.000000MHz	12pF	+/-10ppm
Q24FA20H0005200	2.5x2x0.55mm	FA-20H	40.000000MHz	9pF	+/-10ppm
Q24FA20H0005300	2.5x2x0.55mm	FA-20H	16.000000MHz	9pF	+/-20ppm
Q24FA20H0005400	2.5x2x0.55mm	FA-20H	24.000000MHz	12pF	+/-30ppm
Q24FA20H0005900	2.5x2x0.55mm	FA-20H	16.000000MHz	6pF	+/-10ppm
Q24FA20H0006600	2.5x2x0.55mm	FA-20H	16.000000MHz	9pF	+/-30ppm
Q24FA20H0006900	2.5x2x0.55mm	FA-20H	40.000000MHz	10pF	+/-10ppm
Q24FA20H0007000	2.5x2x0.55mm	FA-20H	26.000000MHz	8pF	+/-10ppm
Q24FA20H0007300	2.5x2x0.55mm	FA-20H	26.000000MHz	10pF	+/-10ppm

Q24FA20H0070100	2.5x2x0.55mm	FA-20H	38.400000MHz	10pF	+/-10ppm
Q24FA20H0070400	2.5x2x0.55mm	FA-20H	14.318000MHz	20pF	+/-20ppm
Q24FA20H0070600	2.5x2x0.55mm	FA-20H	20.000000MHz	9pF	+/-10ppm
Q24FA20H0072000	2.5x2x0.55mm	FA-20H	25.000000MHz	12pF	+/-20ppm
Q24FA20H0072100	2.5x2x0.55mm	FA-20H	24.000000MHz	12pF	+/-10ppm
Q24FA20H0072200	2.5x2x0.55mm	FA-20H	14.745600MHz	10pF	+/-30ppm
Q24FA20H0072700	2.5x2x0.55mm	FA-20H	32.000000MHz	9pF	+/-10ppm
Q24FA20H0073500	2.5x2x0.55mm	FA-20H	30.000000MHz	7pF	+/-30ppm
Q24FA20H0073600	2.5x2x0.55mm	FA-20H	27.120000MHz	10pF	+/-10ppm
Q24FA20H0074200	2.5x2x0.55mm	FA-20H	19.200000MHz	16pF	+/-30ppm
Q24FA20H0074300	2.5x2x0.55mm	FA-20H	20.000000MHz	10pF	+/-20ppm
Q24FA20H0075300	2.5x2x0.55mm	FA-20H	24.000000MHz	15pF	+/-20ppm
Q24FA20H0075600	2.5x2x0.55mm	FA-20H	13.333000MHz	12pF	+/-30ppm
Q24FA20H0075900	2.5x2x0.55mm	FA-20H	19.200000MHz	12pF	+/-30ppm
Q24FA20H0076300	2.5x2x0.55mm	FA-20H	19.200000MHz	7pF	+/-10ppm
Q24FA20H0077400	2.5x2x0.55mm	FA-20H	19.200000MHz	10pF	+/-20ppm
Q24FA20H0078800	2.5x2x0.55mm	FA-20H	26.000000MHz	7pF	+/-10ppm
Q24FA20H0078900	2.5x2x0.55mm	FA-20H	26.000000MHz	9pF	+/-10ppm
Q24FA20H0079300	2.5x2x0.55mm	FA-20H	33.333330MHz	8pF	+/-20ppm
Q24FA20H0079600	2.5x2x0.55mm	FA-20H	26.000000MHz	6pF	+/-10ppm
Q24FA20H0081200	2.5x2x0.55mm	FA-20H	33.868000MHz	12pF	+/-20ppm
Q24FA20H0081600	2.5x2x0.55mm	FA-20H	24.000000MHz	8pF	+/-30ppm
Q24FA20H0082000	2.5x2x0.55mm	FA-20H	14.745600MHz	7pF	+/-20ppm
Q24FA20H0082600	2.5x2x0.55mm	FA-20H	38.400000MHz	8pF	+/-10ppm

FA-20H專用于智能手機應用,Q24FA20H0000600,石英晶體諧振器
小型貼片石英晶振主要采用了，先進的晶片的拋光工藝技術，是晶體行業中石英晶片研磨技術中表面處理的最高技術，最終使晶片表面更光潔，平行度及平面度更好，大大的降低諧振電阻，使精度得到了很大的提升。改變了傳統的生產工藝，使產品在各項參數得到了很大的改良,外觀尺寸具有薄型表面貼片型石英晶體諧振器,特別適用于有小型化要求的市場領域,比如智能手機,無線藍牙,平板電腦等電子數碼產品。
