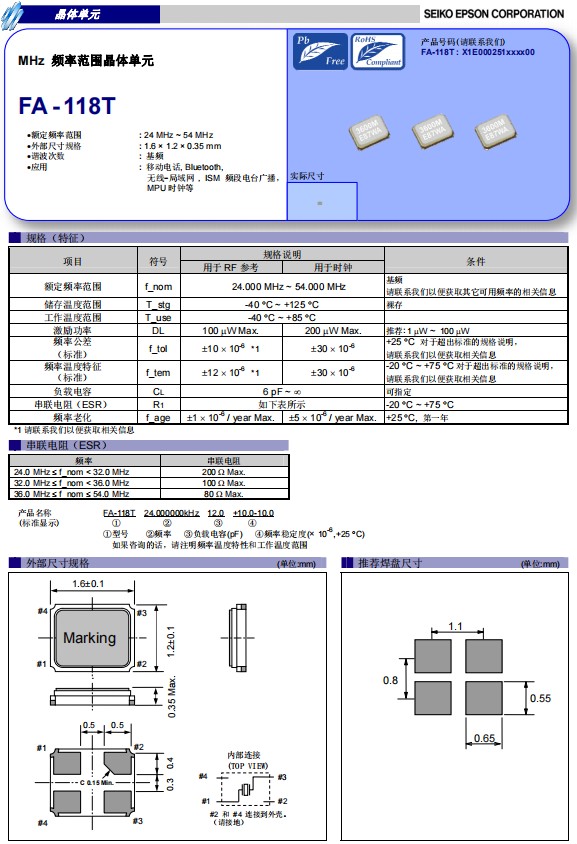

隨著高科技產品的隨身攜帶且使用方便讓電路板中的各路元器件都使出渾身解數，力求越來越小的同時還要越來越精密，因此小型化的貼片尺寸成了很多廠家的需要考慮條件。而愛普生推出的這款1612無源晶振FA-118T，它是一款長1.6mm*寬*1.2mm*高0.35mm的石英晶體諧振器，是當今很受歡迎的小尺寸晶振，隨著民生用市場中可無線通信產品的發展和迅速普及，搭載近距離無線通信Bluetooth功能的產品逐漸增加.FA-118T晶振被廣泛應用小型便捷式設備，可穿戴設備，智能手機，平板電腦，無線電話，汽車電子，數碼產品等。

愛普生FA-118T無源晶振X1E000251006900適用于無線通訊系統,X1E000251012600,石英晶體諧振器

產品編碼	尺寸	型號	頻率	負載電容	頻率公差
X1E000251000900	1.6x1.2x0.35mm	FA-118T	27.120000MHz	10pF	+/-30ppm
X1E000251001100	1.6x1.2x0.35mm	FA-118T	26.000000MHz	8pF	+/-10ppm
X1E000251001400	1.6x1.2x0.35mm	FA-118T	26.000000MHz	9pF	+/-10ppm
X1E000251001600	1.6x1.2x0.35mm	FA-118T	37.400000MHz	16pF	+/-10ppm
X1E000251003100	1.6x1.2x0.35mm	FA-118T	37.400000MHz	16pF	+/-7ppm
X1E000251003200	1.6x1.2x0.35mm	FA-118T	40.000000MHz	10pF	+/-10ppm
X1E000251003300	1.6x1.2x0.35mm	FA-118T	25.000000MHz	10pF	+/-30ppm
X1E000251003400	1.6x1.2x0.35mm	FA-118T	25.000000MHz	9pF	+/-30ppm
X1E000251003500	1.6x1.2x0.35mm	FA-118T	30.000000MHz	8pF	+/-20ppm
X1E000251004600	1.6x1.2x0.35mm	FA-118T	24.000000MHz	12pF	+/-10ppm
X1E000251005000	1.6x1.2x0.35mm	FA-118T	32.000000MHz	9pF	+/-10ppm
X1E000251005600	1.6x1.2x0.35mm	FA-118T	52.000000MHz	9pF	+/-15ppm
X1E000251005700	1.6x1.2x0.35mm	FA-118T	25.000000MHz	7pF	+/-30ppm
X1E000251005900	1.6x1.2x0.35mm	FA-118T	32.000000MHz	8pF	+/-10ppm
X1E000251006000	1.6x1.2x0.35mm	FA-118T	48.000000MHz	10pF	+/-30ppm
X1E000251006400	1.6x1.2x0.35mm	FA-118T	26.000000MHz	12pF	+/-10ppm
X1E000251006500	1.6x1.2x0.35mm	FA-118T	32.000000MHz	10pF	+/-10ppm
X1E000251006800	1.6x1.2x0.35mm	FA-118T	24.000000MHz	8pF	+/-30ppm
X1E000251006900	1.6x1.2x0.35mm	FA-118T	24.000000MHz	10pF	+/-30ppm
X1E000251007100	1.6x1.2x0.35mm	FA-118T	40.000000MHz	12pF	+/-8ppm
X1E000251007500	1.6x1.2x0.35mm	FA-118T	26.000000MHz	8pF	+/-10ppm
X1E000251007700	1.6x1.2x0.35mm	FA-118T	25.000000MHz	9pF	+/-10ppm
X1E000251007800	1.6x1.2x0.35mm	FA-118T	40.000000MHz	7pF	+/-10ppm

X1E000251007900	1.6x1.2x0.35mm	FA-118T	32.000000MHz	9pF	+/-10ppm
X1E000251008000	1.6x1.2x0.35mm	FA-118T	32.000000MHz	6pF	+/-10ppm
X1E000251008600	1.6x1.2x0.35mm	FA-118T	32.000000MHz	8pF	+/-20ppm
X1E000251009900	1.6x1.2x0.35mm	FA-118T	48.000000MHz	6pF	+/-30ppm
X1E000251010200	1.6x1.2x0.35mm	FA-118T	50.000000MHz	8pF	+/-30ppm
X1E000251010400	1.6x1.2x0.35mm	FA-118T	32.000000MHz	10pF	+/-20ppm
X1E000251011100	1.6x1.2x0.35mm	FA-118T	25.000000MHz	10pF	+/-50ppm
X1E000251011300	1.6x1.2x0.35mm	FA-118T	25.000000MHz	8pF	+/-10ppm
X1E000251012100	1.6x1.2x0.35mm	FA-118T	24.000000MHz	8pF	+/-10ppm
X1E000251012600	1.6x1.2x0.35mm	FA-118T	24.000000MHz	7pF	+/-30ppm
X1E000251013400	1.6x1.2x0.35mm	FA-118T	32.000000MHz	8pF	+/-10ppm
X1E000251013800	1.6x1.2x0.35mm	FA-118T	32.000000MHz	6pF	+/-10ppm
X1E000251014100	1.6x1.2x0.35mm	FA-118T	32.000000MHz	8pF	+/-20ppm
X1E000251014400	1.6x1.2x0.35mm	FA-118T	24.000000MHz	20pF	+/-30ppm
X1E000251015000	1.6x1.2x0.35mm	FA-118T	38.400000MHz	20pF	+/-10ppm
X1E000251015200	1.6x1.2x0.35mm	FA-118T	48.000000MHz	8pF	+/-10ppm
X1E000251015300	1.6x1.2x0.35mm	FA-118T	24.000000MHz	8pF	+/-10ppm
X1E000251015500	1.6x1.2x0.35mm	FA-118T	32.000000MHz	9pF	+/-30ppm
X1E000251015800	1.6x1.2x0.35mm	FA-118T	50.000000MHz	12pF	+/-10ppm
X1E000251016100	1.6x1.2x0.35mm	FA-118T	37.400000MHz	8pF	+/-10ppm
X1E000251016600	1.6x1.2x0.35mm	FA-118T	32.000000MHz	10pF	+/-10ppm
X1E000251019000	1.6x1.2x0.35mm	FA-118T	40.000000MHz	12pF	+/-10ppm
X1E000251019700	1.6x1.2x0.35mm	FA-118T	32.000000MHz	6pF	+/-10ppm
X1E000251020100	1.6x1.2x0.35mm	FA-118T	38.400000MHz	8pF	+/-10ppm
X1E000251021200	1.6x1.2x0.35mm	FA-118T	40.000000MHz	6pF	+/-10ppm
X1E000251021500	1.6x1.2x0.35mm	FA-118T	32.000000MHz	6pF	+/-20ppm
X1E000251021900	1.6x1.2x0.35mm	FA-118T	40.000000MHz	10pF	+/-10ppm

愛普生FA-118T無源晶振X1E000251006900適用于無線通訊系統,X1E000251012600,石英晶體諧振器

1612mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接（產品無鉛對應）,為無鉛產品.
