- 產品型號：97203357
- 晶振頻率：59.941801MHZ
- 晶振尺寸：5.0*3.2*1.2mm
- 產品應用： 1XVC059941VB,DSV531SV,59.941801MHZ,日本大真空晶振,1XVC059941VB有源壓控晶振,四腳貼片晶振.日本KDS進口晶振,特點:5032尺寸,厚度1.2mm,小型SMD-VCXO,雖然小型但確保充足的可變量,頻率發生線性變化的模擬類型VCXO.用...
-

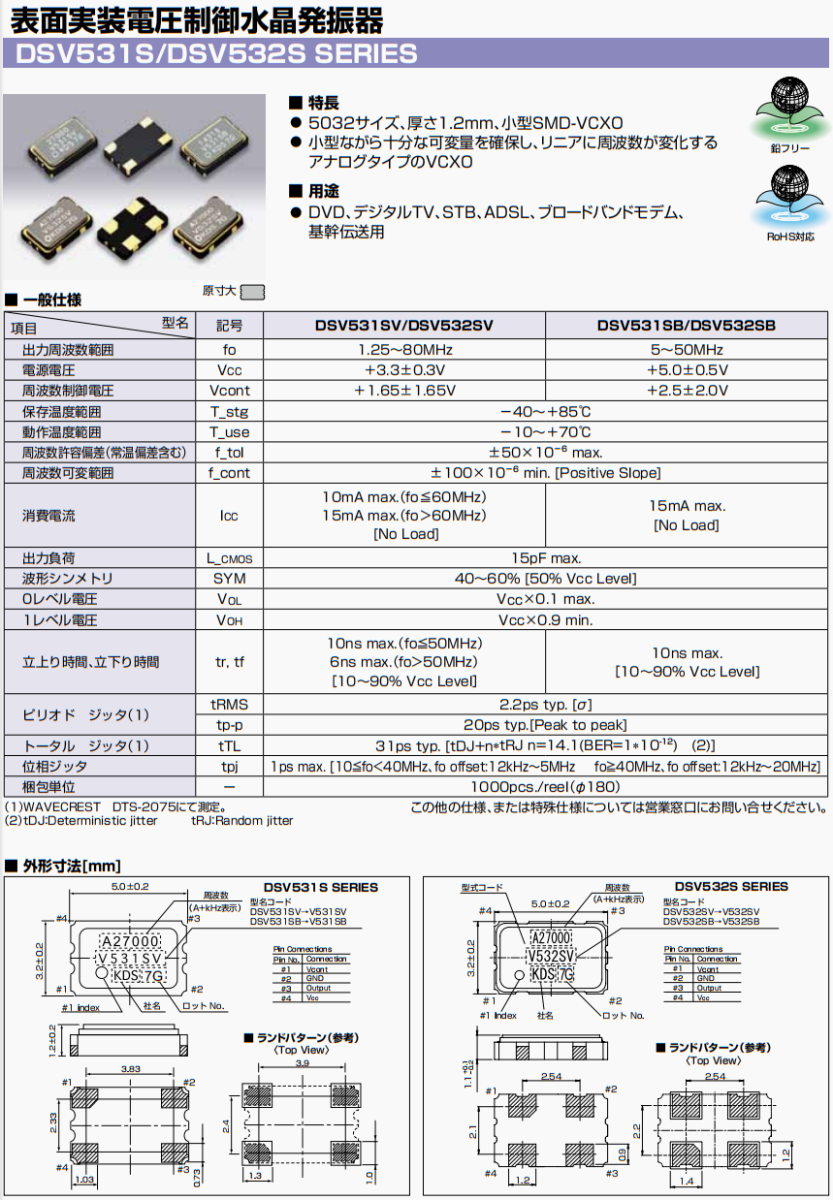

1XVC059941VB,DSV531SV,59.941801MHZ,日本大真空晶振
1XVC059941VB,DSV531SV,59.941801MHZ,日本大真空晶振,1XVC059941VB有源壓控晶振,四腳貼片晶振.日本KDS進口晶振,特點:5032尺寸,厚度1.2mm,小型SMD-VCXO,雖然小型但確保充足的可變量,頻率發生線性變化的模擬類型VCXO.用途:DVD,數字,STB,基于傳輸用.
1XVC059941VB,DSV531SV,59.941801MHZ,日本大真空晶振
| 項目/型號 | 符號 | DSV531SV/DSV532SV | DSV531SB/DSV532SB |
| 輸出頻率范圍 | fo | 1.25～80MHz | 5～50MHz |
| 電源電壓 | VCC | +3.3±0.3V | +5.0±0.5V |
| 頻率控制電壓 | Vcont | +1.65±1.65V | +2.5±2.0V |
| 保存溫度范圍 | T_stg | −40～＋85℃ | |
| 工作溫度范圍 | T_use | −10～＋70℃ | |
| 頻率公差（含常溫偏差） | f_tol | ±50×10−6 max. | |
| 頻率可變范圍 | f_cont | ±100×10−6 min. [Positive Slope] | |
| 10mA max.（fo≦60MHz） | 15mA max. | ||
| 消耗電流 | ICC | 15mA max.（fo＞60MHz） | [No Load] |
| [No Load] | |||
| 輸出負載 | L_CMOS | 15pF max. | |
| 波形對稱 | SYM | 40～60% [50％ VCC Level] | |
| 0電平電壓 | VOL | VCC×0.1 max. | |
| 1電平電壓 | VOH | VCC×0.9 min. | |
| 10ns max.（fo≦50MHz） | 10ns max. | ||
| 上升時間，下降時間 | tr, tf | 6ns max.（fo＞50MHz） | ［10～90％ VCC Level] |
| ［10～90％ VCC Level］ | |||
| 周期抖動（1） | tRMS | 2.2ps typ. [σ] | |
| tp-p | 20ps typ.[Peak to peak] | ||
| 總抖動（1） | tTL | 31ps typ. [tDJ+n＊tRJ n=14.1(BER=1＊10-12) (2)] | |
| 相位抖動 | tpj | 1ps max. [10≦fo＜40MHz、fo offset:12kHz～5MHz fo≧40MHz、fo offset:12kHz～20MHz] | |
| 包裝單位 | − | 1000pcs./reel(φ180） | |
.jpg)
1XVC059941VB,DSV531SV,59.941801MHZ,日本大真空晶振
| 品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 |
| KDS晶振 | 1TJH125DR1A0004 | DST1610A | 1610 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | TJF080DP1AA003 | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF080DP1AA003 | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF0SPDJ1AI00S | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF080DP1AI00P | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF090DP1AI007 | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AI008 | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF125DP1AI009 | DST310S | 3215 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TJF090DP1AA00L | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF080DP1AA00K | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AA00G | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF0SPDN1A000B | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TD125DGNS003 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS036 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS002 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD060DHNS014 | DT-26 | 206 | 32.768KHZ | 6.0PF | 20PPM |
| KDS晶振 | 1TD125BHNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD075BHNS001 | DT-26 | 206 | 32.768KHZ | 7.5PF | 10PPM |
| KDS晶振 | 1TD125BFNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD1001HNS001 | DT-26 | 206 | 32.768KHZ | 10.0PF | -6/+2PPM |
| KDS晶振 | 1TD1250HNS005 | DT-26 | 206 | 32.768KHZ | 12.5PF | 30/40P |
| KDS晶振 | 1TC125DFNS030 | DT-38 | 308 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TC125NFNS002 | DT-38 | 308 | 32.768KHZ | 12.5PF | 1000PPM |
| KDS晶振 | 1TC125AFSS003 | DT-38 | 308 | 32.768KHZ | 12.5PF | 5PPM |
| KDS晶振 | 1TC250E65 | DT-38 | 308 | 32.768KHZ | 12.5PF | +12/+28PPM |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000MHZ | 10PF | 10PPM |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6MHZ | 10PF | 30PPM |
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332MHZ | 12PF | 20PPM |
| KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000MHZ | 20PF | 30PPM |
| KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000MHZ | 10PF | 20PPM |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000MHZ | 11PF | 12PPM |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000MHZ | 15PF | 15PPM |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AJ100005B | SMD-49 | 11*4.6 | 10.000MHZ | 12PF | 50PPM |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576MHZ | 18PF | 30PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000MHZ | 12.9PF | 20PPM |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400MHZ | 12PF | 50ppm |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367MHZ | 2.8V | 1.5ppm |
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC09382 | DSA535SG | 5032 | 18.432MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000MHZ | 12PF | 15ppm |
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000MHZ | 10PF | 30ppm |
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000MHZ | 9PF | 10ppm |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000MHZ | 8PF | 10ppm |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000MHZ | 10PF | 20ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6MHZ | 3.3V | 100ppm |
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000MHZ | 7PF | 20PPM |
| KDS晶振 | 1N227000EE0L | DSX321G | 3225 | 27.000MHZ | 9PF | 50ppm |
| KDS晶振 | 1ZZCAA27120BB0D | DSX211G | 2016 | 27.12MHZ | 10PF | 20PPM |
| KDS晶振 | 1N226000AA0L | DSX321G | 3225 | 26.000MHZ | 7.5pf | 10ppm |
| KDS晶振 | 1N226000AA0G | DSX321G | 3225 | 26.000MHZ | 12.5PF | 10ppm |
| KDS晶振 | 1RAK38400CKA | DSR211STH | 2016 | 38.4MHZ | 7pf | 12ppm |
| KDS晶振 | 7CG03840A06 | DSR1612ATH | 1612 | 38.400MHZ | 8PF | 10ppm |
