歐美晶振
- 產品型號：36306831
- 晶振頻率：106.25MHz
- 晶振尺寸：
- 產品應用： 歐美進口晶振,富通晶振,XO14長方形鐘振,有源晶振,XO14-106M250-A50E3晶振,石英晶體振蕩器,四腳插件晶振,頻率106.25MHz,電壓5V,頻率容差50ppm,工作溫度-55~125°C,符合RoHS標準,低相位抖動晶振,低成本晶振,微處理器晶振...
-
XO14-106M250-A50E3|106.25MHz|5V|富通長方形鐘振
XO14-106M250-A50E3|106.25MHz|5V|富通長方形鐘振,歐美進口晶振,富通晶振,XO14長方形鐘振,有源晶振,XO14-106M250-A50E3晶振,石英晶體振蕩器,四腳插件晶振,20.8×13.0mm晶振,頻率106.25MHz,電壓5V,頻率容差50ppm,工作溫度-55~125°C,符合RoHS標準,低相位抖動晶振,低成本晶振,微處理器晶振,移動應用晶振,工業自動化晶振,測試與測量設備晶振.
XO14-106M250-A50E3|106.25MHz|5V|富通長方形鐘振特點：
-符合RoHS標準(無鉛)，寬頻率范圍，工業和軍事溫度可用
-極低相位抖動與基本或第三泛音晶體設計
-三態輸出可用，行業標準引線間距
-低成本，適用于16位和32位微處理器
-符合RoHS標準(無鉛)，寬頻率范圍，工業和軍事溫度可用
-極低相位抖動與基本或第三泛音晶體設計
-三態輸出可用，行業標準引線間距
-低成本，適用于16位和32位微處理器

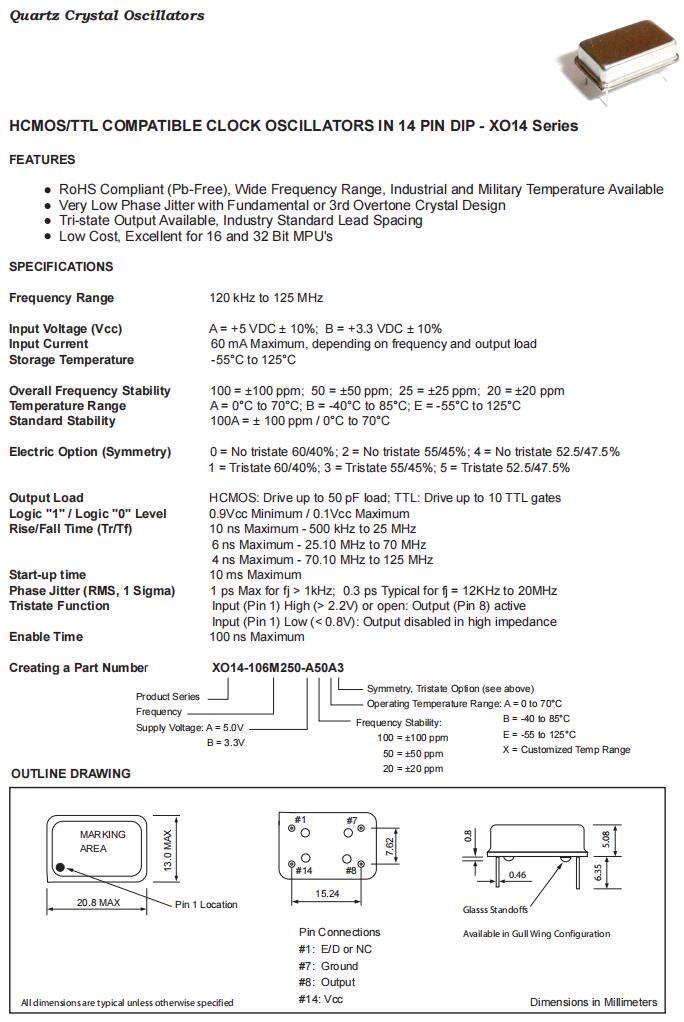

XO14-106M250-A50E3|106.25MHz|5V|富通長方形鐘振規格表
| frequency | 106.25 MHz |
|
Input Voltage (Vcc)
|
A = +5 VDC ± 10%; B = +3.3 VDC ± 10%
|
|
Input Current
|
60 mA Maximum, depending on frequency and output load |
|
Storage Temperature
|
-55°C to 125°C
|
|
Overall Frequency Stability
|
100 = ±100 ppm; 50 = ±50 ppm; 25 = ±25 ppm; 20 = ±20 ppm
|
|
OperatingTemperature Range
|
A = 0°C to 70°C; B = -40°C to 85°C; E = -55°C to 125°C
|
|
Electric Option (Symmetry)
|
0 = No tristate 60/40%; 2 = No tristate 55/45%
1 = Tristate 60/40%; 3 = Tristate 55/45%
|
|
Output Load
|
HCMOS: Drive up to 50 pF load; TTL: Drive up to 10 TTL gates
|
|
Logic "1" / Logic "0" Level
|
0.9Vcc Minimum / 0.1Vcc Maximum
|
|
Rise/Fall Time (Tr/Tf)
|
10 ns Maximum - 500 kHz to 25 MHz
6 ns Maximum - 25.10 MHz to 70 MHz
4 ns Maximum - 70.10 MHz to 125 MHz
|
|
Start-up time
|
10 ms Maximum
|
|
Phase Jitter
|
1 ps Max for fj > 1kHz; 0.3 ps Typical for fj = 12KHz to 20MHz
|
|
Aging
|
3 ppm First year; 1 ppm/year after first year
|
.jpg)

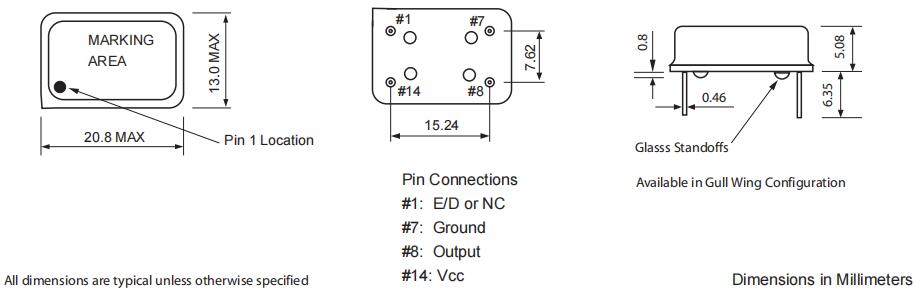

XO14-106M250-A50E3|106.25MHz|5V|富通長方形鐘振尺寸圖
