- 產品型號：72437877
- 晶振頻率：32.768KHz
- 晶振尺寸：2.0*1.2*0.6mm
- 產品應用： 領先同行的車載多媒體系統晶振,日產富士晶振,FCT2M03276803I6晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，2012晶振，石英晶振，二腳晶振，無源晶振，KHz晶振，貼片晶振，6G通訊專用晶振，6G網絡晶振，高品質晶...
-
領先同行的車載多媒體系統晶振,日產富士晶振,FCT2M03276803I6晶振
領先同行的車載多媒體系統晶振,日產富士晶振,FCT2M03276803I6晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，2012晶振，石英晶振，二腳晶振，無源晶振，KHz晶振，貼片晶振，6G通訊專用晶振，6G網絡晶振，高品質晶振，F(xiàn)CT-2M晶振，超小尺寸2.0×1.2×0.6 mm，高可靠性環保性能，高頻穩定性好，精度高，設計用于自動安裝和回流焊，符合RoHS標準/無鉛
領先同行的車載多媒體系統晶振,日產富士晶振,FCT2M03276803I6晶振

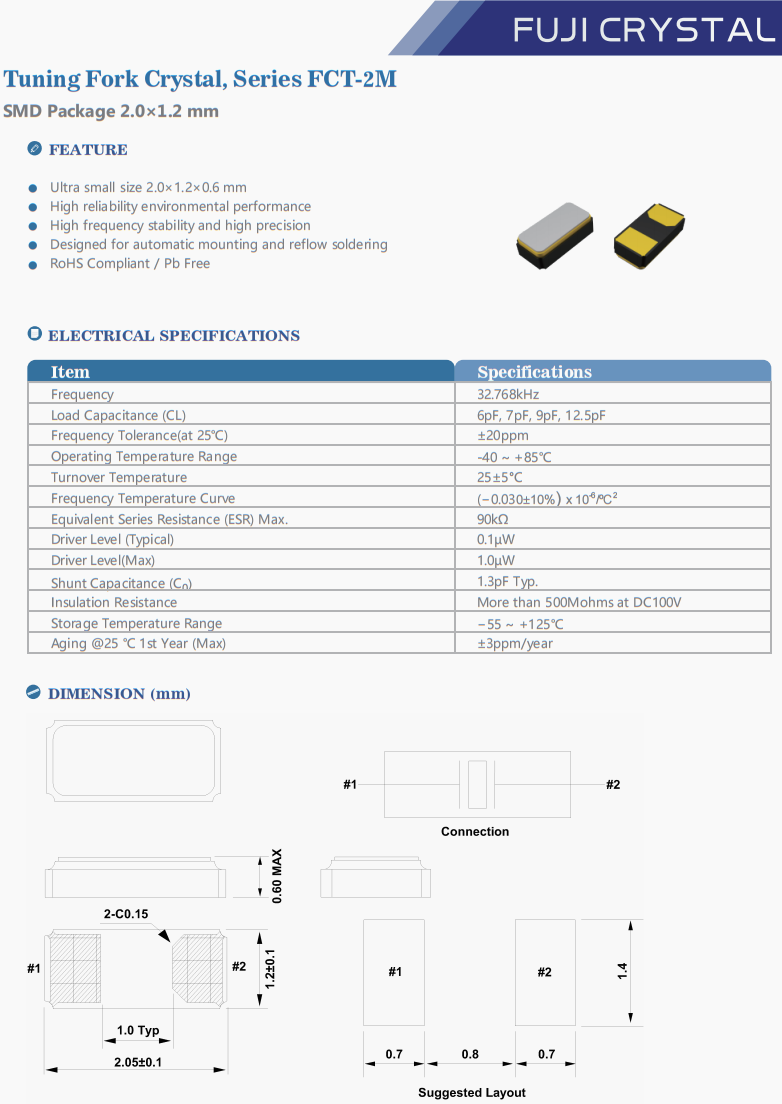

| 項目 | 技術規格 |
| 頻率 | 32.768kHz |
| 負載電容 | 6pF, 7pF, 9pF, 12.5pF |
| 頻率容差 | ±20ppm |
| 工作溫度 | -40 ~ +85℃ |
| 周轉溫度 | 25±5°C |
| 頻率溫度曲線 | (−0.030± 10%) x 10-6/ºC2 |
| 等效串聯電阻最大值 | 90kΩ |
| 驅動電平（標準） | 0.1µW |
| 驅動電平（最大） | 1.0µW |
| 分流電容 | 1.3pF Typ. |
| 絕緣電阻 | More than 500Mohms at DC100V |
| 儲存溫度 | − 55 ~ +125℃ |
| 老化 | ±3ppm/year |

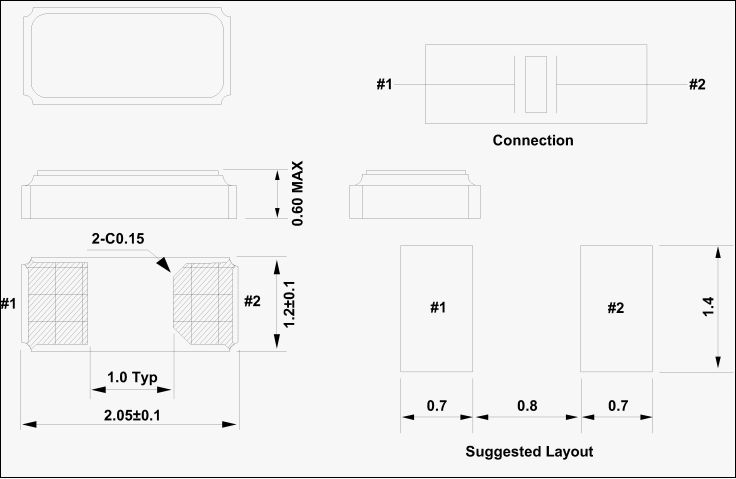

.jpg)
領先同行的車載多媒體系統晶振,日產富士晶振,FCT2M03276803I6晶振
| 原廠編碼 | 生產商 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 |
| FCT2M03276805W6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 5pF |
| FCT2M03276807E5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276806Y5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M032768C5E3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12.5pF |
| FCT2M03276807E6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276806Y3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276812U6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276804D1 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 4pF |
| FCT2M03276810U6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 10pF |
| FCT2M03276807D5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276807S5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276812Y1 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276806W3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276809I6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276809W5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276806W6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276804U6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 4pF |
| FCT2M03276812D1 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276804W3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 4pF |
| FCT2M03276803W3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 3pF |
| FCT2M03276812S3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276803U5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 3pF |
| FCT2M03276805P5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 5pF |
| FCT2M03276803P5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 3pF |
| FCT2M03276803I6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 3pF |
| FCT2M03276804P5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 4pF |
| FCT2M032768C5R6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12.5pF |
| FCT2M03276809P3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M032768C5D3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12.5pF |
| FCT2M03276805P3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 5pF |
| FCT2M032768C5D5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12.5pF |
| FCT2M03276809P5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276805W1 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 5pF |
| FCT2M032768C5S6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12.5pF |
| FCT2M03276807P3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276806I3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276812S6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276805P1 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 5pF |
| FCT2M03276806P1 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276806U3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276806E6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276807T6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M032768C5Y5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12.5pF |
| FCT2M03276812P3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M032768C5I3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12.5pF |
| FCT2M03276807E3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276812U3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276806R6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276804S3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 4pF |
| FCT2M03276804Y5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 4pF |
| FCT2M03276804U3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 4pF |
| FCT2M03276807T1 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276804D6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 4pF |
| FCT2M03276812W3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276805S6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 5pF |
| FCT2M03276805E5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 5pF |
| FCT2M03276812R3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276806S6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276812T3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276809R5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276809R6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276812E3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276809Y1 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276809Y3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276806R3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276806S1 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276805Y5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 5pF |
| FCT2M03276807Y5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276809Y6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276804S5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 4pF |
| FCT2M032768C5I5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12.5pF |
| FCT2M03276809S3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276806E3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276804T3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 4pF |
| FCT2M03276809D6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276806T6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276807T5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276806T3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276803E3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 3pF |
| FCT2M032768C5P3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12.5pF |
| FCT2M03276803T5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 3pF |
| FCT2M03276812U5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276807R6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276807Y1 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276805D3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 5pF |
| FCT2M03276809D1 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276807D6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276812W6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276807S6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276803Y5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 3pF |
| FCT2M03276812P5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276809T3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276807W6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276804Y6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 4pF |
| FCT2M03276806D5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 6pF |
| FCT2M03276812W5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12pF |
| FCT2M03276803I3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 3pF |
| FCT2M03276805Y6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 5pF |
| FCT2M03276807E1 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M03276809P6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276809E6 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 9pF |
| FCT2M03276807Y3 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 7pF |
| FCT2M032768C5W5 | Fuji晶振 | FCT-2M | 32.768 kHz | - | - | 12.5pF |
